Titan Guard Auto Locking Doors

ASTM F3038 15 MINUTE FE & UL 752 BR

The Harden Titan Guard Auto Locking, 15 Minute Forced-Entry Ballistic Resistant Steel Doors are tested to the ASTM F3038-21 standard and multiple UL 752 levels, offering superior multi-threat protection. The mortised, multi-point locking system automatically secures upon closing and provides single-motion emergency egress.

Design Overview

ANTI-TERRORISM LEVEL SECURITY tested to the ASTM F3038-21 standard and multiple UL 752 levels, it offers superior multi-threat protection

ARCHITECTURAL APPEAL the mortise lock seamlessly integrates into the door leaf providing a clean modern look

DESIGN FLEXIBILITY high performance coatings and several cladding options are available to complement any architectural style

EASE OF OPERATION the multi-point locking system automatically secures upon closing and provides single-motion emergency egress

DURABILITY stainless steel hardware, including low friction hinges, provide extreme durability and low maintenance throughout the life cycle

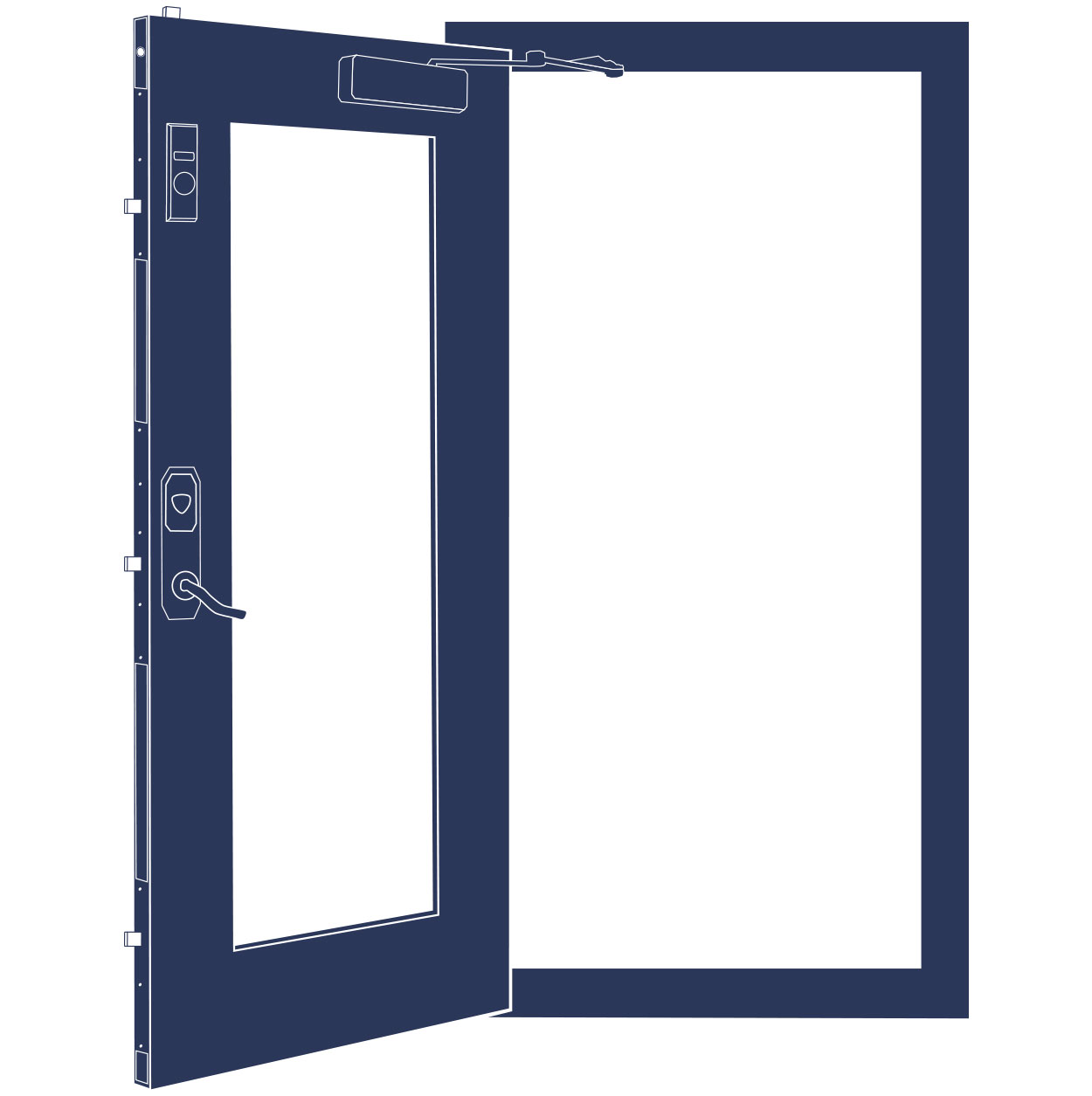

Titan Guard Auto Locking 15-Minute Forced-Entry Ballistic Resistant Steel Doors feature a mortised, trigger actuated 4-point bolting system. This multi-point locking system automatically secures upon closing and provides single-motion emergency egress. The doors are tested to meet ASTM F3038-21 standards for 15-minute forced entry and multiple UL 752 ballistic levels. Titan Guard Doors provide robust protection against mob-level forced entry and rifle-level ballistic attacks, ensuring the protection of people and assets in high-security environments.

Available in a variety of finishing options, Titan Guard Doors are customizable to suit a wide range of applications and architectural designs. The doors offer exceptional protection for data centers, courthouses, safe havens, mission-critical buildings, guard houses, control rooms, and any location where the highest level of protection, aesthetics, and durability are essential.

  • Courthouses
  • Government
  • Military
  • Oil & Gas
  • Critical Infrastructure
  • Data Centers
  • Commercial
  • Safe Haven
  • Education

  • Full door system, with all hardware, framing and glazing that is factory installed and tested

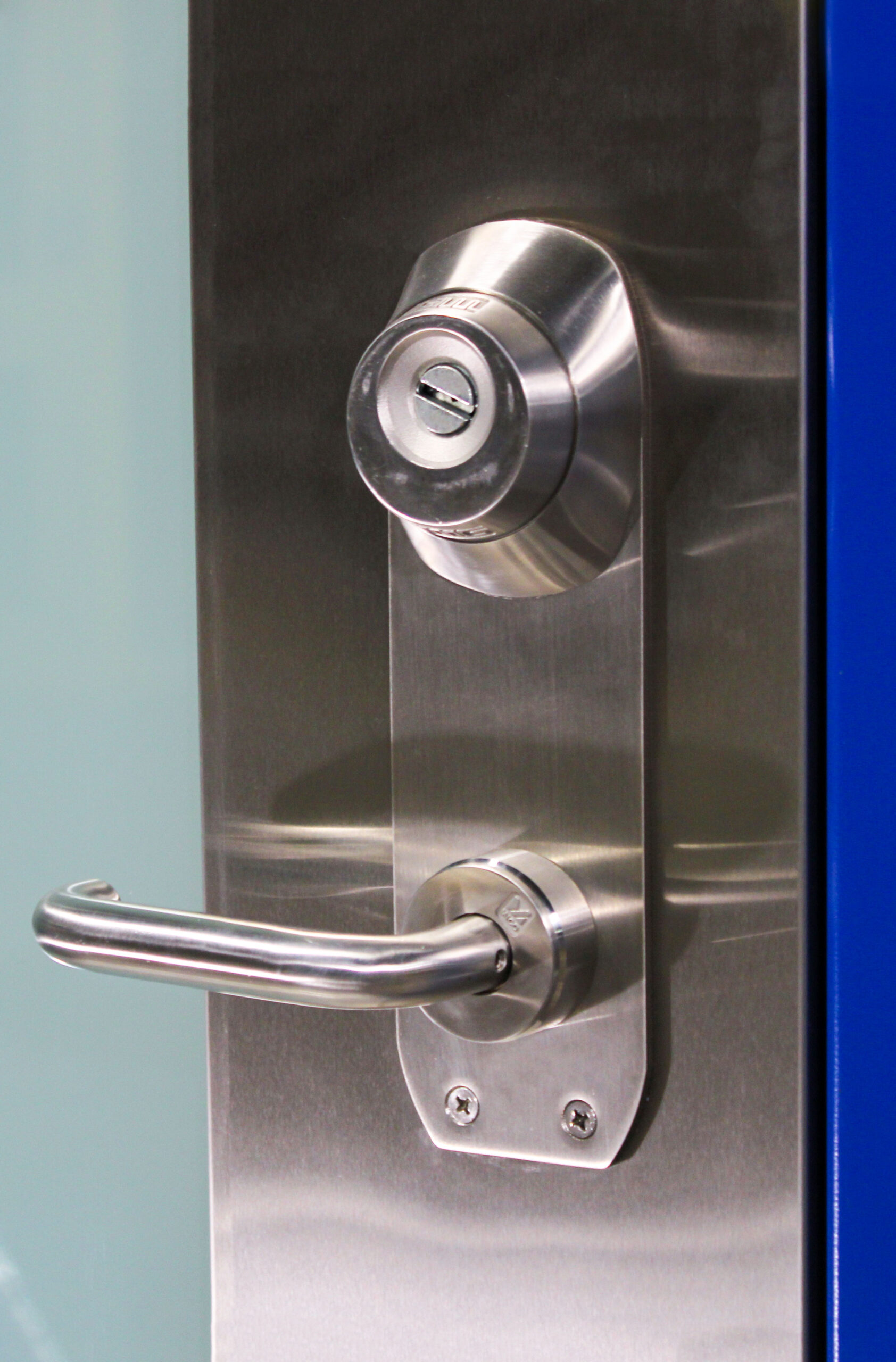

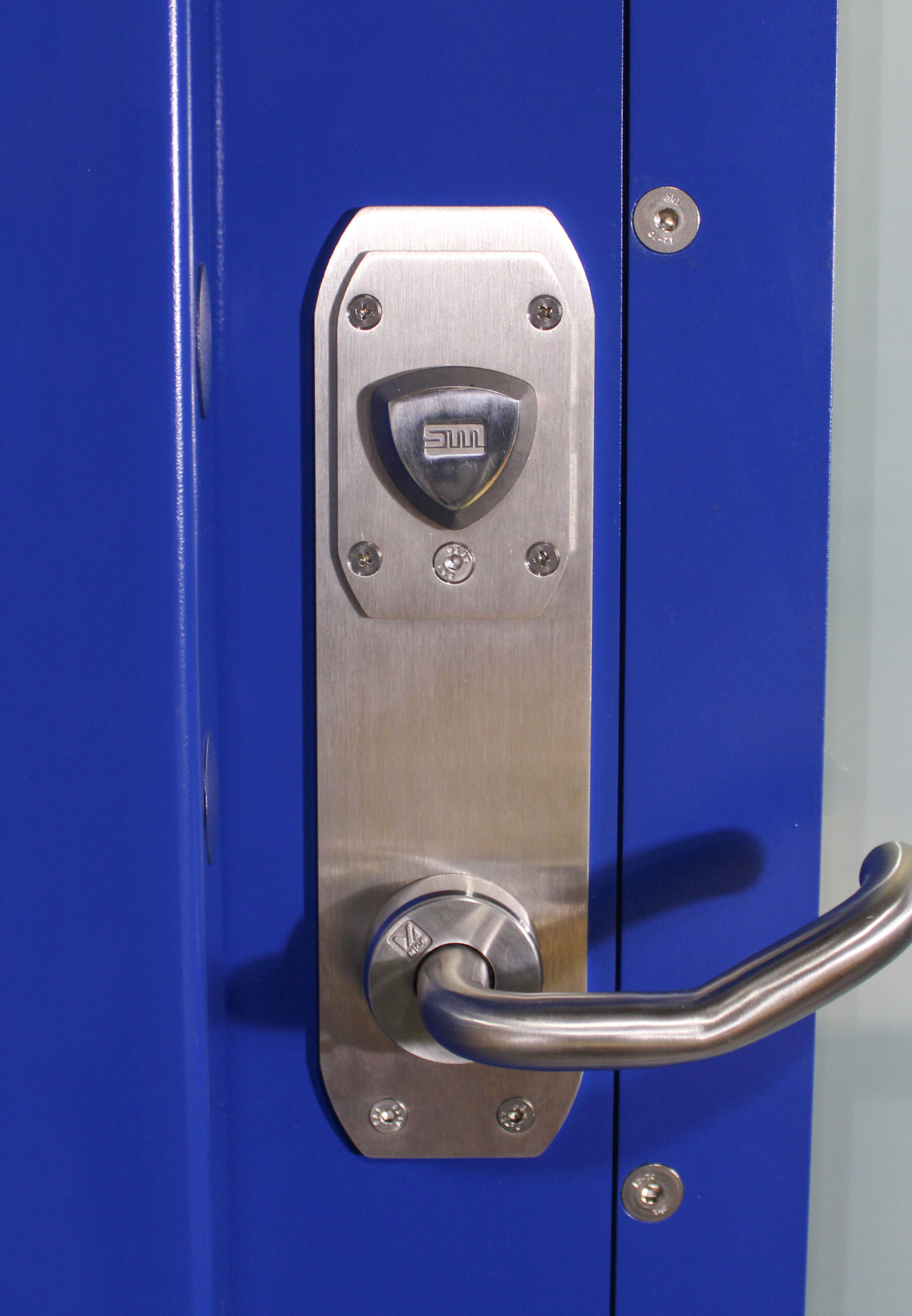

  • Forced-entry locks, trigger actuated 4-point bolt system that automatically locks when the door closes

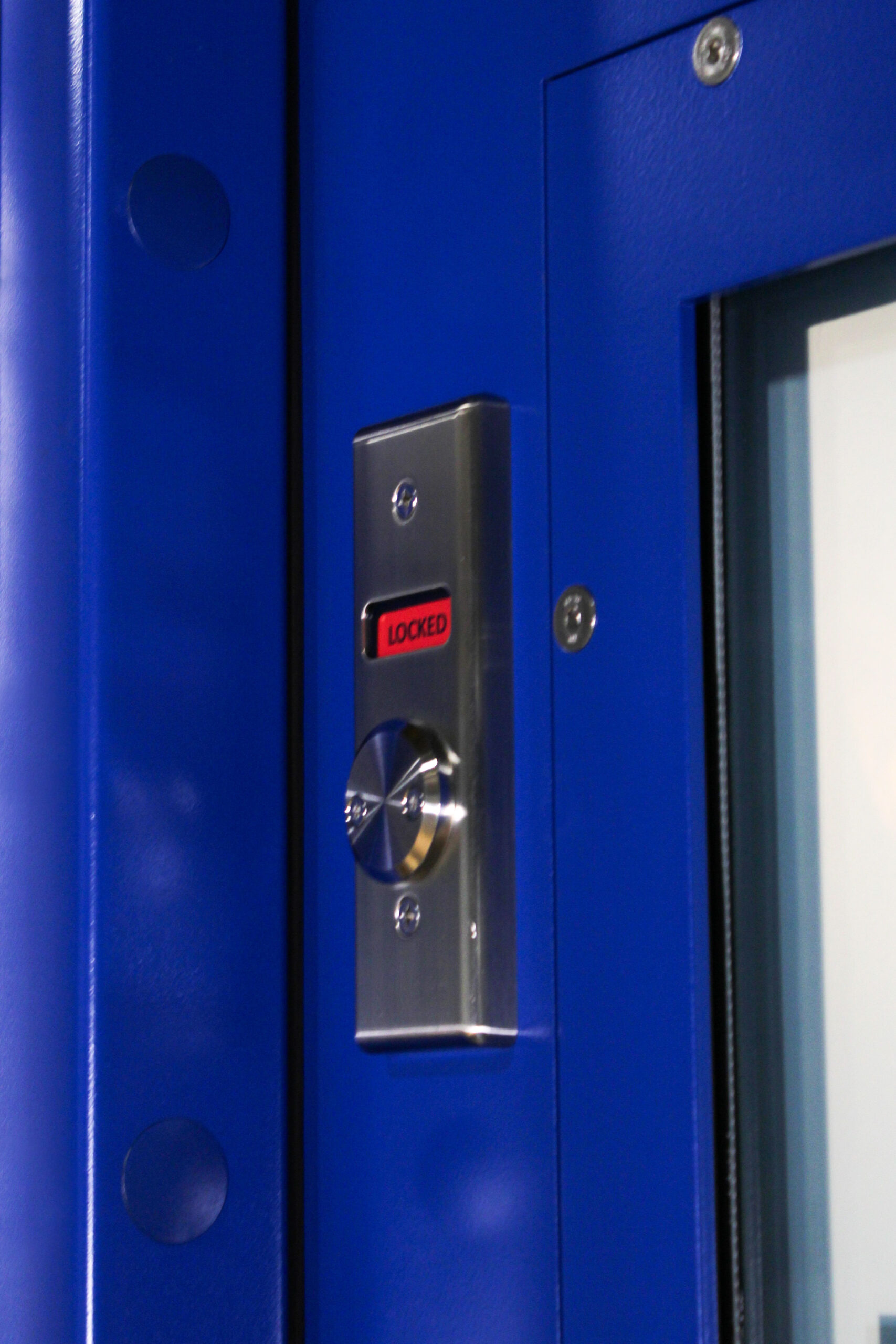

  • Locked status indicator
  • Formed steel frame with welded corners
  • Sub-frame in one of three styles
    • embed plate with studs for newly poured concrete walls
    • tubing with chemical or mechanical anchors for existing masonry walls
    • tubing for welding to steel walls
  • Laminated glazing to meet applicable threats
  • Removable glazing stop
  • Ballistic trim to protect construction shim gap (on ballistic-rated units)

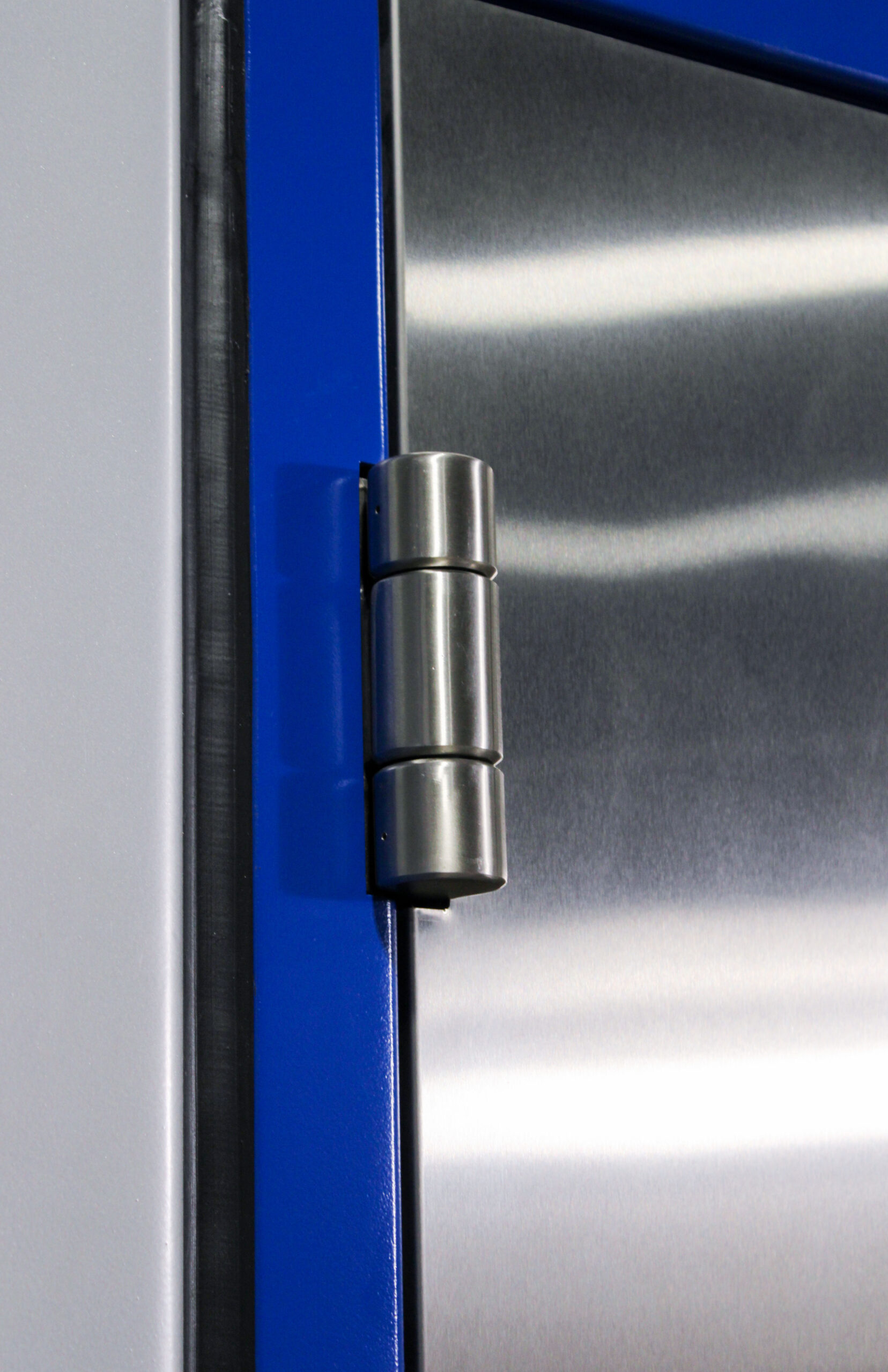

  • Forced-entry-resistant, low friction stainless steel hinges
  • Provisions for electric connections
  • Accessible terminal block to facilitate field connections
  • Requires low pull force to open the door
Standard Finish
  • Hot-dip galvanized per ASTM A123

Door Leaf and Frame
  • Door leaf cladding
  • Frame cladding
  • Peephole / door viewer
  • Transom lites and side lites
Hardware
  • Lever or push bar exit device
  • Multiple hardware finishes
  • Position sensors
  • Electrical closers
Door Glazing
  • Full vision lite
  • Low-e hardcoats
  • Tints
  • Frits
  • High-definition logo printing
  • Switchable privacy glass
Optional Finishes
  • Primer
  • Manufacturer’s standard powder coat (Contact Harden for color chart)
  • High performance liquid coating (Contact Harden for color chart and minimum quantities)
  • Aluminum cladding; painted, clear or color anodized or mill finish
  • Stainless steel cladding
  • Bronze cladding
  • Wood veneer cladding

Applicable Standards, Testing and Certifications
  • ASTM F3038-21: Standard Test Method for Timed Evaluation of Forced-Entry-Resistant Systems
  • UL 752: Standard for Bullet-Resisting Equipment

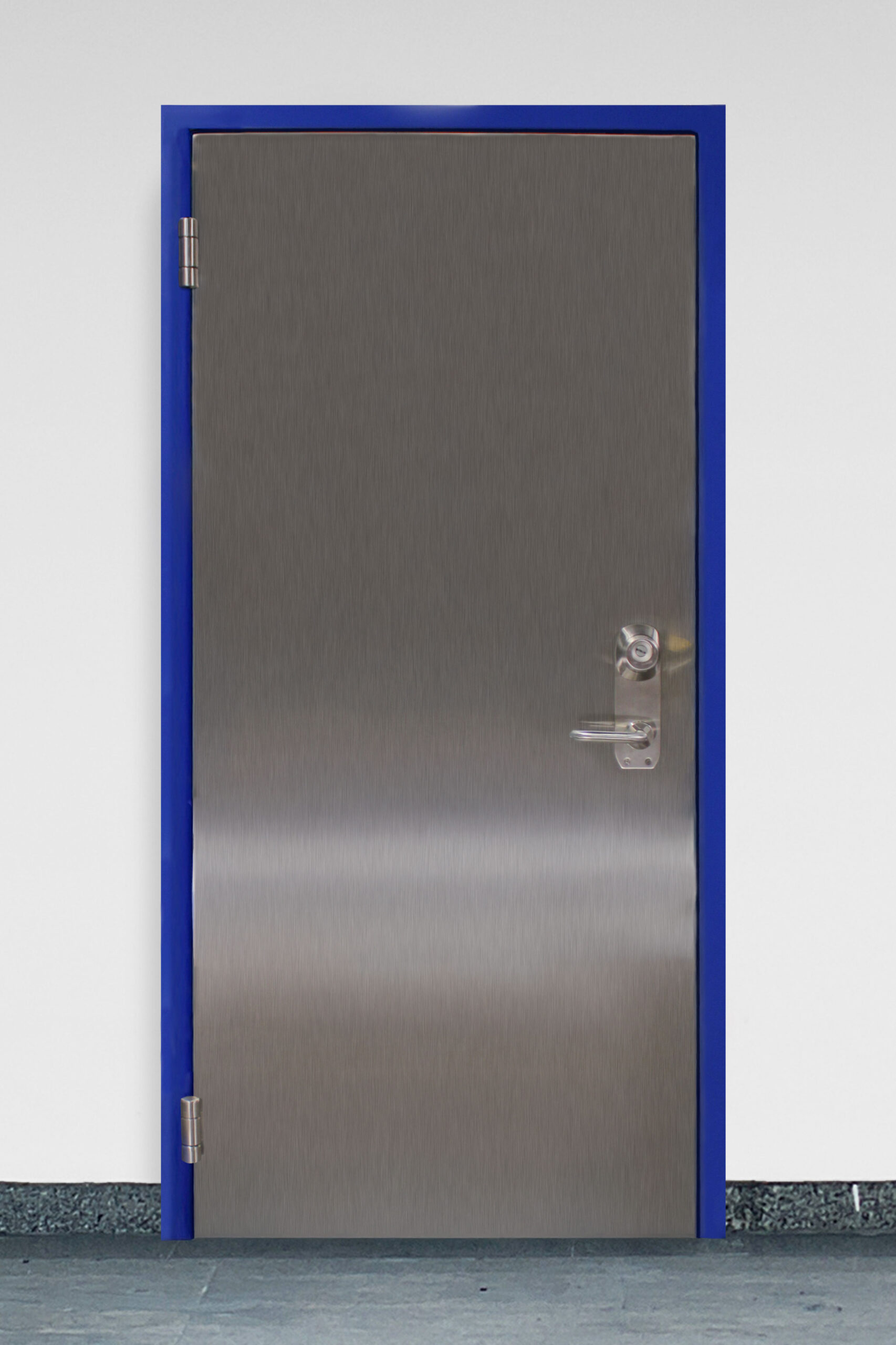

    • Opaque: Levels RF-F and RF-H(8)

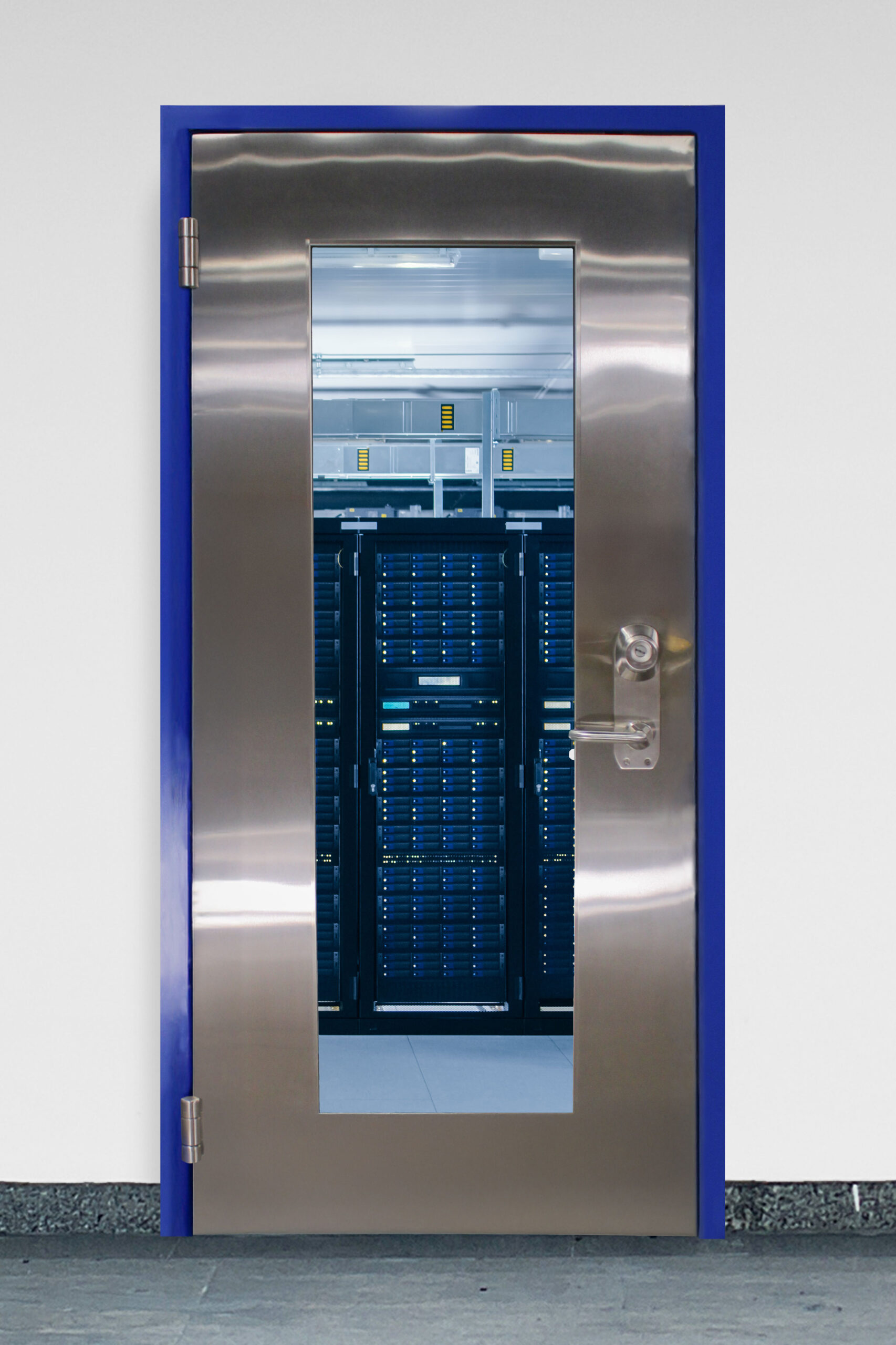

    • Full Vision: Levels RF-E(5) and RF-G(7)
  • ANSI/BHMA A156.1: Butts and Hinges
Installation Considerations
  • Doors are fully assembled at the factory, and require only minimal preparation prior to installation
  • Sub-frames can be shipped in advance of factory pre-hung door assembly
  • Harden performs Factory Acceptance Testing to ensure the selected hardware functions perfectly and that the door fits correctly in the frame
  • Three different methods of installation are available depending on the stage and type of wall construction:
    • Plate-type embeds cast into concrete
    • Steel tube-type sub-frames bolted into the wall
    • Steel tube-type sub-frames welded to the wall structure
Maintenance

Regular inspection of door and hardware is required. Hardware not manufactured by Harden may have specific maintenance requirements; refer to manufacturer’s literature for information.

Availability & Cost

Door systems are typically manufactured to order and subject to production lead times at the time of purchase.

Warranty

Harden warrants that its Architectural Security products shall remain free of defects in material and workmanship under normal use for a period determined by the individual project specification.
